- Easy to add extra display by plug in
device to USB 3.0 connector
- High speed high resolution display up to
2048 x 1152
- Small and slim design, save desktop
space
- Audio input, adding sound to HDMI output
- HDMI / VGA dual output
- Power from USB, no extra power supply
needed
Specifications:
- Compliant with USB 3.0 Specification
- Backward compatible with USB 2.0
specification
- Support USB 3.0 upstream port in: SS
mode (5 Gbps) HS mode (480 Mbps) FS mode (12 Mbps)
- Compliant with HDMI ver. 1.2
specification and backward compatible to DVI Ver. 1.0 specification
- 24-bit 2-channel I2S digital audio data
via HDMI
- One I2S interface support 2-channel
audio
- Audio sample rate range: 32 kHz ~ 48 kHz
- Sample size range: 16 bits ~ 24 bits
- Support pixel rate ranging from 25 MHz
to 165 MHz
- DTV resolution: 480i, 576i, 480p, 576p,
720p, 1080i and 1080p
- Monitor resolution: VGA, SVGA, XGA, SXGA,
and UXGA ( Max resolution : 2048 x 1152 )
- Support pixel rate from 25 MHz to 200
MHz
Package Includes:

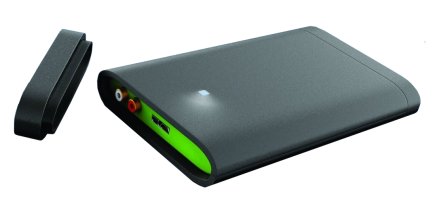

- SE-USB3-HDMI-31
- USB Cable
- Driver CD
- Audio Cable
- Optional HDMI to DVI adapter
|
