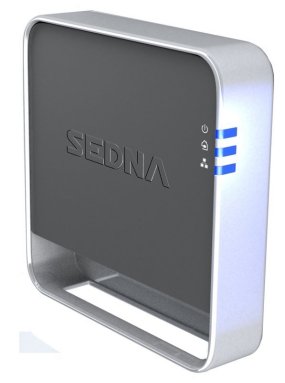

Model No. : SE-USB-PLC-14


  4 Port USB Over Power Line Network Server






  General Features

The USB 2.0 Power line server  is a powerful solution convert 4 external USB storage device to network sharing storage through power line, and no need for any LAN cable connection. It is an effective and high performance products.

  • Share your USB devices through your power line (PLC)

  • No need to set up new network cables

  • Maximum connection speed 85Mbps

  • Supports Windows Vista Rally Technology

  • Sharing for USB Storage, printer, scanner, webcam, and many other USB devices

  • Provied step to step installation software, support live device status monitoring via both web browser and application software

  • Support majority Ethernet protocols : LPR/LPD, DHCP, UPnP

  • Supports USB 1.1 / USB 2.0 ( Hi-speed ) specification

  • LED indicators for USB, and Power Line connection

  • Support Windows xp, Vista and Windows 7

  • Supporting USB devices :
    USB External Storage, USB HDD media player, USB Printer, USB Camera, USB scanner, etc.



Specifications :
PLC :
PLC Standard HomePlug Powerline Specification 1.0 Turbo compliant
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX
PLC Speed UP to 85Mbps
Encryption 56-bits DES encryption
USB Server :
Supports products : USB External Storage, USB HDD Media player, scanner...etc
Interface / Ports : 10/100 Base-TX Auto MDI / MDI-X ( RJ45), USB 2.0 A type
Data transfer rate : Up to 40Mbps
Hard disk format : FAT32 / NTFS
Plug and Play : Supported
Drag and Drop : Supported
OS support Windows 2000/XP/Vista/Win 7
Dimension : 125x125x30 mm
Weight : 350g

Package Content :

 USB Power LIne server x 1
 Driver and manual CD x 1
 Power cable  x 1
