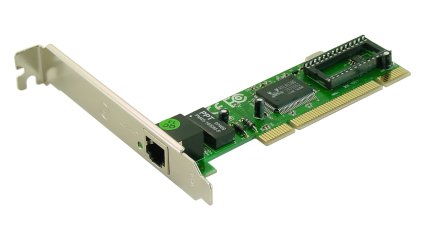

Model No. : SE-PCI-LAN-8139


  PCI 10/100 Ethernet Adapter

  FEATURES AND SPECIFICATIONS





Description :

SE-PCI-LAN-8139 is a 10/100M PCI Ethernet LAN card, fully compliant with PCI 2.2, auto negotiation and detects the rate of switches, hubs that connected and adjusts the transmission method and rate (10/100M, full/half duplex)…

Features :

  • 32 bit PCI-bus Rev 2.1, PnP supported, full duplex
  • Realtek RTL8139 chipset adopted
  • RPL/PXE supported
  • Compliant with IEEE802.3 10BASE-T and IEEE802.3u 100BASE-TX
  • PCI2.2 supported, supported PCI clock up to 40MHz
  • Standard RJ-45 port, 10/100M auto negotiation, full/half duplex supported
  • ACPI supported
  • Remote waken-up supported

Specifications :

Standard supported IEEE 802.3、IEEE 802.3u

Bus Type

 32bit 33MHz  PCI2.1
Ports 1 10 /100M RJ45
Transmission Media 10Base-T： Cat 3 UTP or above
100Base-TX：Cat UTP

LED Indicator

Link/Act
Working Environment Working temperature:0ºC～40ºC;
Store temperature:-20ºC～60ºC
Working humidity :10%～90% RH Non-condensing;
Storage Temperature:5%～90% RH Non-condensing
OS supported Windows 9x / Me / NT / 2000 / XP / 2003 / Win Vista / Win 7, Netware, Linux




Package Content :-
  • SE-PCI-LAN-8139 adapter
  • Optional Driver CD
