Features : |
| |
|

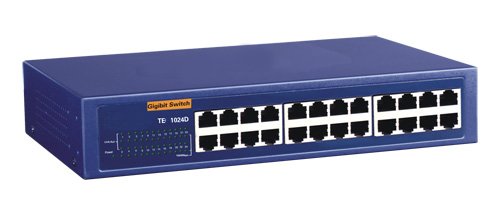

SE-GS-1024 Gigabit Ethernet Switch is specially designed to solve data
transfer bottleneck in the enterprises and Internet Cafe. It has 24
10/100/1000Mbps auto-negotiation RJ45 ports and supports auto MDI/MDI-X. It
is an ideal choice for you to enhance your network to 1000Mbps
- Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab
Ethernet standards
- Supports NWAY Auto-Negotiation function, auto detect
transmission rate and duplex models, UPnP
- Offers 24 10/100/1000Mbps Auto-Negotiation RJ45 ports
and supports Auto MDI/MDIX to simplify network fragment and maintenance
- Supports IEEE802.3x full-duplex flow control and
half-duplex backpressure flow control
- Supports non-blocking line speed transfer up to
48 Gbps backplane bandwidth
- Adopts store-and–forward mode, supports MAC Address
auto learning and integrates 8K MAC Address Table
- External Power Adapter and desk MINI steel chassis
design
|
| |
|
Specifications : |
| Transmission Media : |
10Base-T：Cat.3 or 3e UTP；;
100Base-TX：Cat.5 UTP；; 1000Base-T：Cat.5e UTP |
| Ports : |
24 RJ-45 ports and 10/100/1000Mbps
per port |
| Dimensions :
|
26 x 106 x 158 mm |
| Consumption : |
25 W |
| AC adapter output range
: |
5V 6000 mA |
| Storage temperature
: |
-40℃~70℃ |
| Storage Humidity : |
5%~90% RH no condensing |
| Operating temperature : |
0℃~40℃ |
| Operating Humidity : |
10%~90% RH no condensing |
| Filtering Address Table
: |
8K |
| Backplane Bandwidth : |
48 Gbps |
| Standards and Protocols
Supported : |
IEEE 802.3, IEEE 802.3u, IEEE
802.3ab, IEEE 802.3x |
Approval :
CE / FCC |
| |
|
Package
Content
: |
| |
|
- SE-GS-1024 switch
- External Power Adapter
- User manual
|
| |
|
|
| |
|
