Model No. :SE-EC-USB3-2

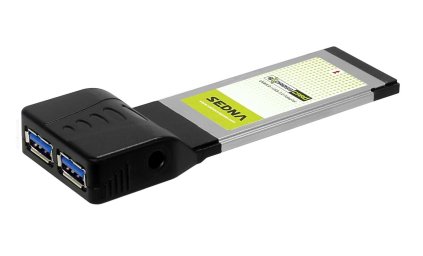

  Express Card USB 3.0 2 Port Adapter





  FEATURES AND SPECIFICATIONS

Features:

USB 3.0 Express Card

SE-EC-USB3-2 works up to 5 Gbps for data transfer when connecting to USB 3.0 compliant peripherals, while maintaining compatibility with existing USB peripheral devices. Users will benefit from ExpressCard plug-n-play ease of use, which eliminates the need to open the chassis to add new features. With the USB3.0 ExpressCard/34mm, it makes you connect kinds of USB peripheral instantly and conveniently, such as external storage devices, MP3 players, external writer, digital cameras, webcam, networking and video devices, and all other USB devices.



Specifications :

  • Fully compliant with ExpressCard Specification 1.0.
  • Full single-lane (or x1) PCI Express throughput.
  • ExpressCard/34 form factor module.
  • Compliant with Universal Serial Bus 3.0 specification Revision 1.0.
  • Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 0.95.
  • Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices.
  • Supports USB data transfer rate of 1.5/12/480/5000 Mbps.
  • Expands two external USB3.0 Super-Speed ports on the system.
  • Built-in DC Jack connector for receiving extra power to meet USB3.0 +5V/900mA power output standard.
  • Hot-swapping feature allows you to connect/disconnect devices without powering down the system.
  • Driver supports for Microsoft Windows 2000, XP, Vista, and 7 operation system.
  • CE, FCC, RoHS

Package contents :

  • 1 x Express Card USB 3.0 adapter

  • 1 x User Manual
  • 1 x Driver CD
